Specifications
Name Wireless Shutter Sensor
Model PST-WSS101
Power Supply Battery
Battery Type 23A 12V
Wireless frequency 433MHz
Wireless transmission range 100-200 meters(Open area)
Coding chip and Resistance 2262/1.5-4.7MΩ or EV1527/300KΩ
Alarm indicator Red LED
Low battery indicator Red LED
Antenna type Telescopic antenna
Static current ≤10μA
Alarm current ≤30mA
Material Metal
Magnetic Sensor working distance 50-70mm
Operation Temp. –10°C to +50°C
Humidity 5%–95% non-condensing
Detector Dimensions 105x38x10mm
Magnet Dimensions 105x15x15mm
Weight 150g

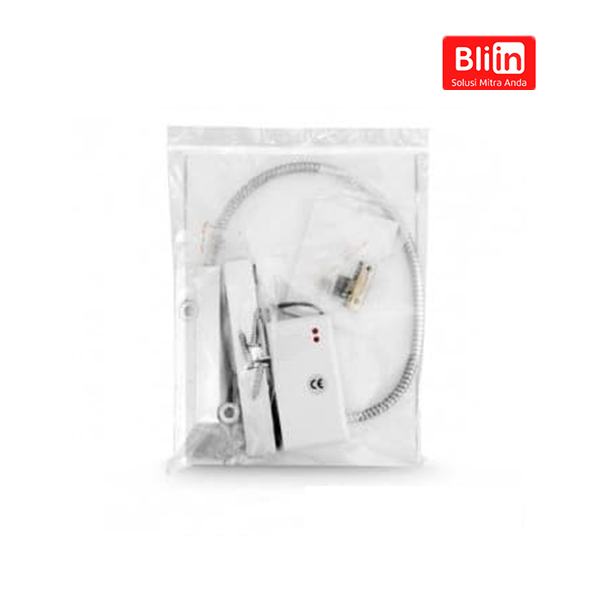

PST-WSS101 Package List
Wireless Door/Window Magnetic Sensor x1
Shutter Sensor x1
Screws x4
Adhesive Paper x1
Bettery x1
